FCT 113 Test System
FCT 113 test system for fuel cell air intake filters
The test system FCT 113 for testing combination filters is based on established test system PAF 113. Air filter testing can be done with various types of particle-based test aerosols as well as different reference test gases.

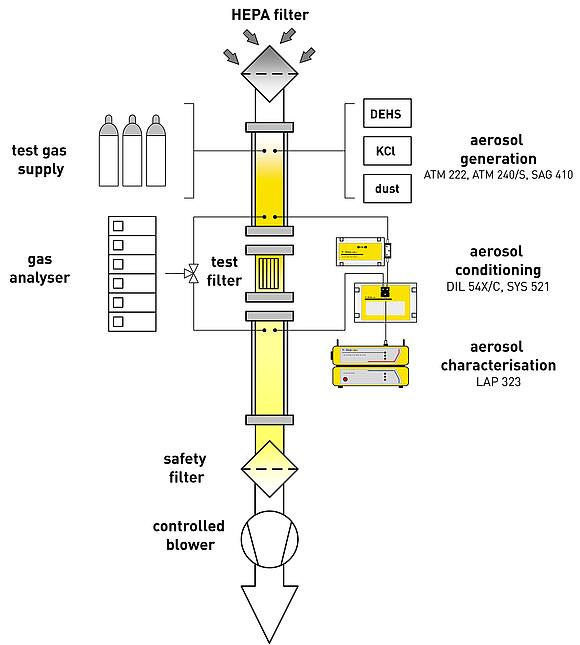

The FCT 113 Fuel Cell Air Intake Filter Test System serves for testing the inlet filters of fuel cells by particles and gases.The test duct and the flow rate unit are upscaled to handle bigger filter dimensions and higher flow rates compared to the original ISO 11155 requirements.
The tests are performed with different test aerosols (salt, oil) and test gases. Filter elements of different designs as well as filter media can be placed into the test duct via a filter adapter. The following filter characteristics can be determined: differential pressure curves, dust loading and fractional efficiency in close accordance to ISO 11155-1 (DIN 71460-1), adsorption tests in close accordance to ISO 11155-2 (DIN 71460-2), recording of adsorption and desorption curves.\r\n
The tests are performed with different test aerosols (salt, oil) and test gases. Filter elements of different designs as well as filter media can be placed into the test duct via a filter adapter. The following filter characteristics can be determined: differential pressure curves, dust loading and fractional efficiency in close accordance to ISO 11155-1 (DIN 71460-1), adsorption tests in close accordance to ISO 11155-2 (DIN 71460-2), recording of adsorption and desorption curves.\r\n
Standards
ISO 11155-2
DIN 71460-2
ISO 11155-1
DIN 71460-1
Benefits
- gas-tight test channels
- modular structure
- high degree of automation
- software-based test sequences
- standardised report
| Parameter title | Unit | Value |
|---|---|---|
| test flow rate | m³/h | 70 ... 1400 |
| measuring range, differential pressure | Pa | ≤ 1000 |
| dimension of test specimen | mm | ≤ 500 × 700 (bypass option: 100 cm²) |
| operating medium, aerosol substance | - | ISO 12103-1 A2 fine test dust, DEHS, sodium chloride (NaCl), potassium chloride (KCl) |
| operating medium, gas | - | nitrogen dioxide, hydrogen (others on request) |
| operating medium, gas/pollutant gas (standard) | - | n-butane (80 ppm), toluene (80 ppm), sulphur dioxide (30 ppm) |
| operating medium, gas/polutant gas (others) | - | nitrogen dioxide (30 ppm), ammonia (30 ppm), hydrogen sulphide (0,4 ppm), acetaldehyde (30 ppm) |
| power supply | - | 3 x 400 VAC; 32 A; 50 Hz |
| sensors, gas | - | FID (organic substances), UV-fluorescence (sulphur dioxide), CLD (nitrogen oxides) |
| sensors, others | - | temperature, relative humidity, barometric pressure |
| dimensions (w × h × d) | mm | 5000 × 2750 × 3400 |
