GTS 114 Test System

Test System GTS 114 for testing air intake filter systems for rotary machinery (ISO 29461)

The test system GTS 114 for testing air intake filter systems for rotary machinery is based on the well-established ALF 114 filter test system for general air filters (ISO 16890) and extended to fulfil the specifications of ISO 29461.
Gas Turbine Filter Test System GTS 114, front viewGas Turbine Filter Test System GTS 114, side viewGas Turbine Filter Test System GTS 114 with gas turbine filter in glass channelGas Turbine Filter Test System GTS 114, glass channel detail, side viewGas turbine filter
Gas Turbine Filter Test System GTS 114, front viewGas Turbine Filter Test System GTS 114, side viewGas Turbine Filter Test System GTS 114 with gas turbine filter in glass channelGas Turbine Filter Test System GTS 114, glass channel detail, side viewGas turbine filter
The GTS 114 was developed with the aim of testing filters with different shapes (filter cartridges, cassette filter, filter with filter bags and plane filter media) using varying test aerosols (salt, oil) under adjustable air conditions (air humidity, temperature) within the test duct. By using the test system the following filter characteristics can be determined: differential pressure curves, dust holding capacity, gravimetric efficiency, fractional efficiency, salt removal efficiency (ISO/AWI 29461-4) and water endurance (ISO 29461-2).

Standards

ISO 29461-1
ISO 29461-2
ISO/AWI 29461-4
ISO/DIS 29461-7
ASHRAE 52.2
ISO 12103-1
ISO 16890-2
ISO 16890-3
ISO 16890-4
Interested?We will gladly advise you

+49 (351) 2166 430

contact form

Benefits

  • circulation mode for control of the test parameters temperature and humidity
  • injection of different aerosols (NaCl, KCl, DEHS) into an optimal flow profile
  • automated feeding of water droplets and supersaturated vapour
  • high level of automation, mostly automated test runs with complete operator guiding

Applications

  • testing of general air filters (ISO 16890, EN 779, ASHRAE 52.2)
  • testing of gas turbine intake filter systems according to ISO 29461-2 and ISO/AWI 29461-4

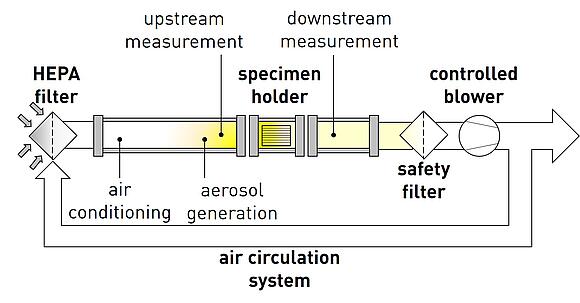

A defined volume flow rate is sucked through a HEPA intake filter, the attached test duct and the safety filter. The test system is composed of 6 sections: aerosol inlet, upstream measurement, specimen holder, downstream measurement, safety filter and flow rate measurement. The measurement sections are equipped with ports for the aerosol characterization and the determination of the pressure drop.

Parameter titleUnitValue
test flow rate m³/h 800 ... 11 000
test aerosol - DEHS, KCl, Ashrae, ISO 12103-A2 (AC fine), ISO 12103-A4 (AC coarse)
dimension of test specimen - 610 × 610 (pocket and casette filters); diameter ≤ 400, lenght ≤ 1500 (filter catridges)
differential pressure of test specimen Pa max. 2000
operating medium, gas/air - compressed air supply bar min. 5 (17 m³/h)
operating medium, water - water supply bar min. 3
power supply - 3 × 400 VAC, 125 A, 50 Hz
air circulation % 0 ... 100
sensors, others - temperature, relative humidity, air pressure
dimensions (w × h × d) m 4,6 × 1,7 × 14,0
