LDP 190 Test System

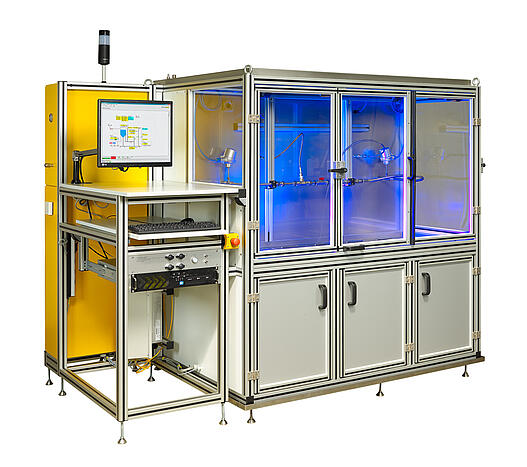

LDP 190 diesel filter differential pressure test system according to ISO 4020/6.3
Standards
download
Product sheet LDP 190Benefits
- automated testing of differential pressure of diesel liquid filters
- wide flow rate range
- test medium can be heated up to 80°C
- automated venting of test specimen
Applications
- testing of diesel fuel filters according to ISO 4020/6.3
- determination of differential pressures for liquid filters
- leak testing of valves

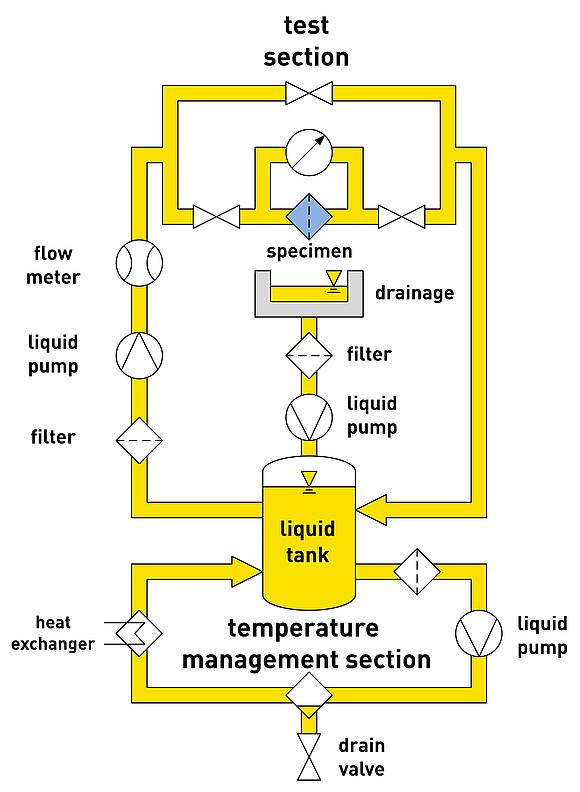

The test medium is stored in a liquid tank and pumped into the test section. The flow rate and pressure are adjusted via the pump and valves. The differential pressure is measured using a pressure transmitter upstream and downstream of the filter. After the test medium has flowed through the test specimen, it is returned to the liquid tank.
The test medium is temperature controlled using two heat exchangers. When changing the test specimen, the test medium can be conditioned simultaneously via a bypass. After changing the test specimen, air may remain in the system. A special venting mode is available to remove the air, which is executed as a fully automated process. A drainage in the test section collects excess test medium and allows it to be returned to the liquid tank. The test system is equipped with a monitored exhaust system designed to prevent the formation of potentially explosive areas (Ex zones). Potentially forming Ex zones are spatially separated. A separate, detailed explosion protection report is available for this purpose.
| Parameter title | Unit | Value |
|---|---|---|
| setting parameter | - | flow rate, system pressure, temperature |
| setting range | l/h | 25 ... 2000 |
| setting range (system pressure) | bar | max. 20 before specimen; max. 5 after specimen |
| setting range (temperature) | °C | 20 ... 80 |
| dimension of test specimen | mm | 500 × 500 × 500 |
| operating medium, liquid | - | diesel, diesel substitutes |
| operating medium, gas/air - compressed air supply | bar | 7 ... 9 (dry, particle-free) |
| power supply | - | 480 V AC / 60 Hz, 10 A oder 120 V AC / 60 Hz, 25 A |
| operating medium, cooling water | °C | ≤ 13 °C |
| user interface | - | Touchscreen, Keyboard, Mouse |
| communication interface | - | USB, Ethernet |
| exhaust air | m³/h | ≥ 50 |
| dimensions (w × h × d) | mm | 2600 × 2050 × 1300 |
| weight | kg | approx. 1000 |
