DIL 544 Dilution System
DIL 544 Dilution System for static dilution (1:100) of aerosols at static air flow rate (28,3 L/min) for mobile operation
Standards

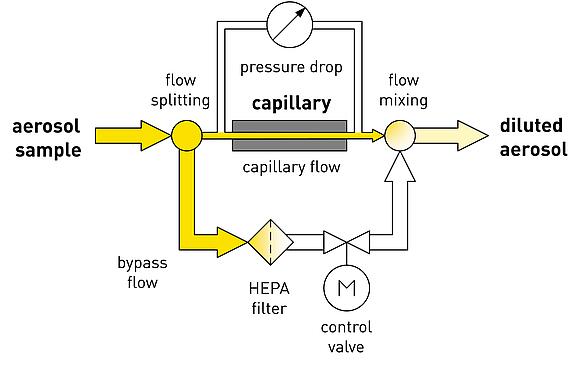

Both DIL 544 and DIL 554 are connected directly to a cleanroom particle counter via a hose. Therefore, the sampling volume flow is generated by the cleanroom counter. Inside the dilution systems, the aerosol sample is divided into two partial volume\r\nflows. From one partial volume flow (bypass), all particles are removed using a HEPA filter. Subsequently, both volume flows are recombined, whereby the particle number concentration at the outlet of the dilution system is reduced.
| Parameter title | Unit | Value |
|---|---|---|
| purpose of use | - | dilution of aerosols |
| sample condition, outlet | - | diluted aerosol |
| dilution factor | - | 100 |
| aerosol, volumetric flow rate | L/min | 28,3 |
| setting method | - | automatic |
| sample condition, inlet | - | non-diluted aerosol |
| power supply | - | 9 V battery block |
| hose connector | mm | Ø 10 |
| pressure drop | kPa | approx. 0,6 |
| environmental condition, temperature | °C | 10 ... 50 |
| environmental condition, max. counterpressure | kPa | ± 30 |
| dimensions (w × h × d) | mm | 120 × 195 × 280 |
| weight | kg | 2,8 |
- carry case for one dilution system DIL and one aerosol generator
- Makris R., Kopic C., Tawackolian K., Schumann L. and Kriegel M. Experimental comparison of aerosol transmission in displacement ventilation and mixing ventilation in a meeting scenario International Journal of Ventilation 24 (2025) 1, 53 - 75
dx.doi.org/10.1080/14733315.2024.2406153 - Schumann L., Lange J., Cetin Y. E. and Kriegel M. Experimental analysis of airborne contaminant distribution in an operating room with different ventilation schemes Building and Environment 244 (2023) 1, 110783
dx.doi.org/10.1016/j.buildenv.2023.110783 - Hofer V. and Kriegel M. Exposure of operating room surgical staff to surgical smoke under different ventilation schemes Indoor Air 32 (2022) 1, e12947
dx.doi.org/10.1111/ina.12947
