RFU 564 Regulated Flow Unit

Regulated Flow Unit RFU 564 for providing variable adjustable and controlled air flow rates up to 100 L/min for underpressure and overpressure operation mode

The Regulated Flow Unit RFU 564 was developed to provide variable adjustable and time-stable air flow rates for both under pressure (intake mode) and over pressure operation (supply mode).
Regulated Flow Unit RFU 564, front view
Regulated Flow Unit RFU 564, front view
Most aerosol analytical tasks for characterisation and testing require the supply or removal of defined air flow rates. Especially for frequently varying needs, users of aerosol technologies are confronted by the challenge to modify or design new test setups. For that matter, the process air flow respectively the main air flow is of fundamental importance to adjust required analytical parameters. Furthermore, the use of the Regulated Flow Unit RFU 564 reduces the need for numerous test stand components (blowers, pipes, valves, flow meters, filters). Accordingly, the installation of aerosol analytical test setups becomes easier and faster.
Interested?We will gladly advise you

+49 (351) 2166 430

contact form


  • regulated air flow generation to compensate changes in pressure conditions
  • simple and fast start up via touch screen or serial interface
  • compact design (ideal for mobile operation and on-table use)


  • generation of well-defined air flow rates in test setups
  • conditioning of aerosols (homogenisation, dilution, transport)
  • dilution of environmental, process and test aerosols by external air supply
  • preparation of particle-free environments (purging, evacuation), e.g., in isolators

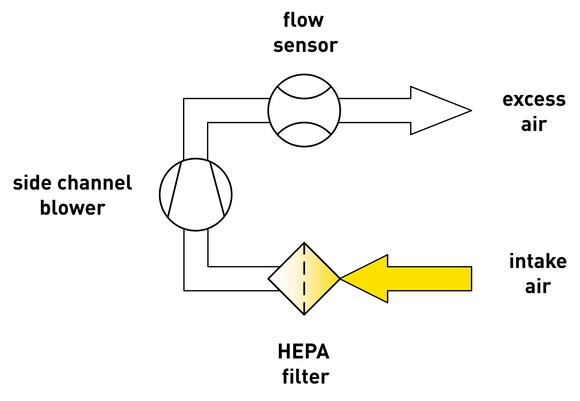

Air is drawn in at the inlet of the RFU 564 via a controlled side channel blower and passed through a high-performance filter (HEPA filter). Air flow regulation is based on a flow sensor that analyses continuously the excess air flow.

Parameter titleUnitValue
setting parameter L/min air flow rate
setting range (pressure-dependent) L/min 0 ... 100 (0 Pa), 0 ... 50 (+/- 1000 Pa)
setting resolution L/min 1
operating medium - air, nitrogen
power supply - 24 V DC (adaptor)
set up time min max. 1
communication interface - RS232 (M9 IP67, 5 pole)
user interface - touch screen
power consumption W max. 23
noise emission dB(A) max. 75 ± 3
environmental condition, temperature °C 10 ... 50
hose connector mm Ø 11 (inner diameter)
dimensions (w × h × d) mm 300 × 200 × 140
weight kg 3.9
