Atomizer Aerosol Generator ATM 240/L for aerosol generation from liquids, compressed air operated, high mass flow rate, ideal for PSL aerosols acc. ISO 29463

The aerosol generator ATM 240/L is used to generate a highly concentrated aerosol out of a suspension for testing air filters using polystyrene (PSL) particles.
Atomizer Aerosol Generator PSL ATM 240/L, front view Atomizer Aerosol Generator PSL ATM 240/L, side view Atomizer Aerosol Generator PSL ATM 240/L, front view
In sensitive areas such as semiconductor and aerospace industry the testing of high efficiency HEPA filters is often not carried out with the commonly used oily aerosol substances (DEHS, PAO, etc.).

Even the smallest amounts of these substances can be stored in the filter and outgas in the application and can lead to product damages. The standard DIN EN 1822-4 describes the filter test with solid particles.

Standards

ISO 29463-3
ISO 29463-4
EN 1822-4
VDI 3491
Interested? We will gladly advise you

+49 (351) 2166 430

contact form

Benefits

  • generation of high concentration PSL test aerosols with low dispersion volume compared to other aerosol generators
  • integrated aerosol drying to minimise the need for additional technical equipment
  • possible start/stop operation for individual tests

Applications

  • testing PTFE membranes with inert solid aerosol
  • testing of special filters for the aerospace and semiconductor industries
  • leak tests on HEPA filters according to ISO 29464-4 (formerly EN 1822-4) Annex D
  • generation of test aerosols consisting of monodisperse polystyrene latex spheres

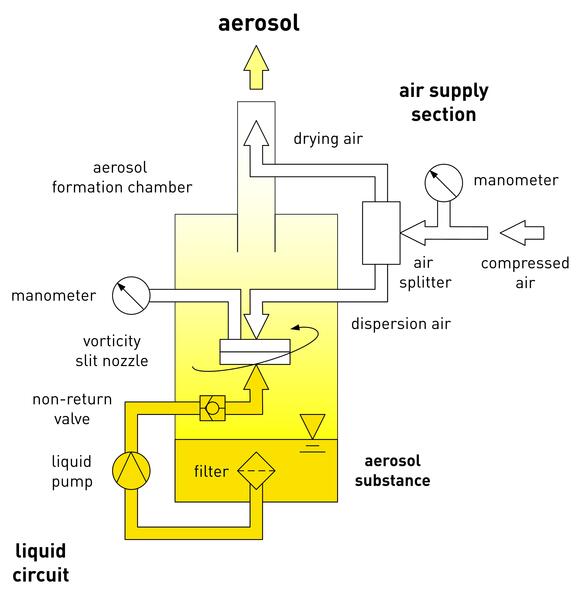

The ATM 240/L is equipped with a vorticity slit nozzle, which is supplied with aerosol substance (PSL dispersion) and compressed air. From the droplet aerosol emerging at the nozzle slit, coarse droplets are initially separated due to inertia. Finer droplets are distributed in the aerosol formation chamber by a special vorticity ring. The compressed air flow rate transports the gradually drying aerosol away. Before leaving the generator, aerosol particles are exposed additionally to drying air to guarantee a drying-stable aerosol at the generator outlet.

Parameter title Unit Value
setting resolution hPa continously
setting range hPa 750 ... 2500
setting parameter hPa nozzle pre-pressure
mass flow rate, aerosol substance g/h 130
volumetric flow rate, aerosol L/h 10000 ... 24000
operating medium, aerosol substance - dispersion/suspension of polystyrene latex particles (PSL)
power supply - 24 V DC (adaptor)
hose connector mm 25 (inner diameter)
power consumption W < 5
dimensions (w × h × d) mm 900 × 400 × 300
weight kg 25,0
