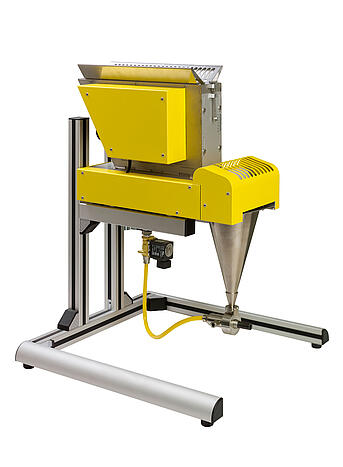

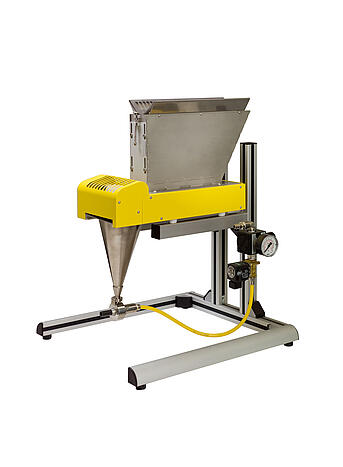

SAG 421 Dust Generator
The SAG 421 is a generator designed to produce solid aerosols from powders and dusts.
Standards
download
product sheet SAG 421Benefits
- provision of high dust mass flow rates
- suitable for a wide range of dusts and powders
- high dosing consistency over long periods
- short setup times (easy cleaning, maintenance,and quick cleaning)
- optionally expandable with mass flow controlor a refill device
- operation of two parallel dispersers on a singlescale with control is possible
Applications
- loading filters, filter media, and separators with dust
- determination of the fractional and total separation efficiency of filters, filter media, and separators
- provision of solid aerosols for stress testing of components and equipment
- visualization of flows

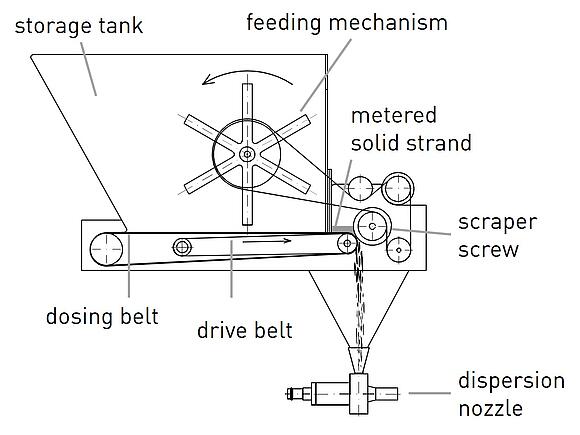

The SAG 421 dust generator features a storage hop-per for the dust to be aerosolized. The dust is continuously homogenized in the storage hopper via an agitation mechanism to ensure consistent conditions for solid dosing. Solid dosing is performed via a dosing belt through an opening (height-adjustable slide) in the storage tank. A scraper screw detaches the dust from the dosing belt, and it falls through a hopper into a compressed-air-powered Venturi nozzle, which efficiently disperses the powder stream.
| Parameter title | Unit | Value |
|---|---|---|
| setting parameter 1 | - | dispersion pressure |
| setting range 1 | bar | 1 ... 8 (dispersion pressure) |
| setting resolution | - | continously adjustable |
| setting parameter 2 | - | belt velocity |
| setting range 2 | mm/min | 1 ... 120 (belt velocity with a slide setting of 15 mm) |
| setting resolution 2 | - | continously adjustable |
| setting parameter 3 | - | relative stirring frequency |
| setting range 3 | % | 0 ... 100 (relative stirring frequency |
| setting resolution 3 | - | continously adjustable |
| aerosol, volumetric flow rate | L/h | 3000 ... 18000 |
| aerosol, mass flow rate (aerosol substance) | g/h | 12 ...6000 (for bulk density of 1 g/cm³) |
| operating medium, gas/air | - | dry, particle-free compressed air or technical inert gas |
| operating medium, gas/air - compressed air supply | bar | 1 ... 8 |
| operating medium, aerosol substance | - | Powders, powder mixtures (< 200 μm; not suitable for abrasive, sticky, or corro-sive powders) |
| operating medium, aerosol substance - filling volume | mL | ≤ 2000 |
| Power supply, voltage | - | 100 ... 240 V AC, 50 ... 60 Hz |
| dimensions (w × h × d) | mm | 400 × 450 × 150 |
| weight | kg | 4,7 |
- Heavy-duty dust injector nozzle
- Base frame
- Dual control
- Weighing option
- SVE 430 Travel Unit

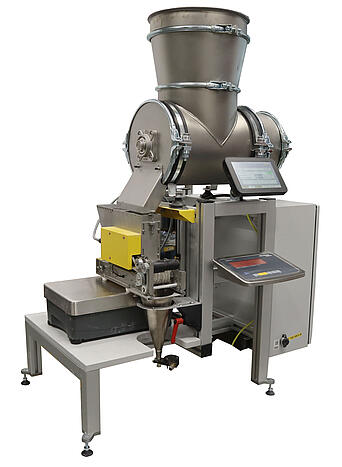

- SRU 435 Refill Unit
